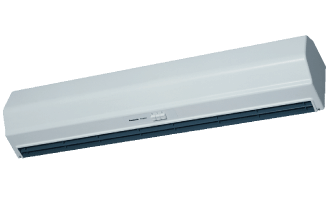

FY-14ELN

Air Curtain [Air Volume (Hi)：1867CMH]

High air velocity
Low energy consumption
Low noise level

Color: White

Price: HK$5,840

Feature
Specifications

User Manual
Catalogue
Downloads:

Feature

High velocity, longer reach and narrow diffusion air by using distinctive design of sirocco fan
Low energy consumption by using high efficient motors
Low noise level by using double suction sirocco fan
Easy installation and maintenance
Size(mm): 226(H) x 1200(W) x 205(D)

Specifications

		FY-14ELN

		FY-14ELN
Frequency		50 hertz (Hz)
Velocity	High	22.5 Meter per second (m/s)
Velocity	Low	20.1 Meter per second (m/s)
Air Volume	High	1,867 Cubic meters per hour (m3/h)
Air Volume	Low	1,668 Cubic meters per hour (m3/h)
Noise	High	63 decibel (dB(A))
Noise	Low	61 decibel (dB(A))
Current	High	1.52 Ampere (A)
Current	Low	1.32 Ampere (A)
Power Consumption	High	333 Wattage (W)
Power Consumption	Low	290 Wattage (W)
Voltage		220 Voltage (V)
Weight		15 Kilogram (kg)

* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.

* Product specifications are subject to change without prior notice.
