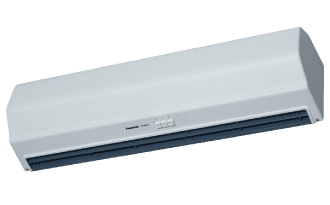

FY-12ESN

Air Curtain [Air Volume (Hi):1050CMH]

  • High air velocity
  • Low energy consumption
  • Low noise level
Color: White
Price: HK$4,770



Feature

  • High velocity, longer reach and narrow diffusion air by using distinctive design of sirocco fan
  • Low energy consumption by using high efficient motors
  • Low noise level by using double suction sirocco fan
  • Easy installation and maintenance
  • Size(mm): 226(H) x 900(W) x 205(D)

Specifications

FY-12ESN
FY-12ESN
Frequency 50 hertz (Hz)
Velocity High 16.9 Meter per second (m/s)
Low 15.8 Meter per second (m/s)
Air Volume High 1,050 Cubic meters per hour (m3/h)
Low 960 Cubic meters per hour (m3/h)
Noise High 55 decibel (dB(A))
Low 50 decibel (dB(A))
Current High 0.82 Ampere (A)
Low 0.69 Ampere (A)
Power Consumption High 176 Wattage (W)
Low 155 Wattage (W)
Voltage 220 Voltage (V)
Weight 13 Kilogram (kg)
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
