40BLAH

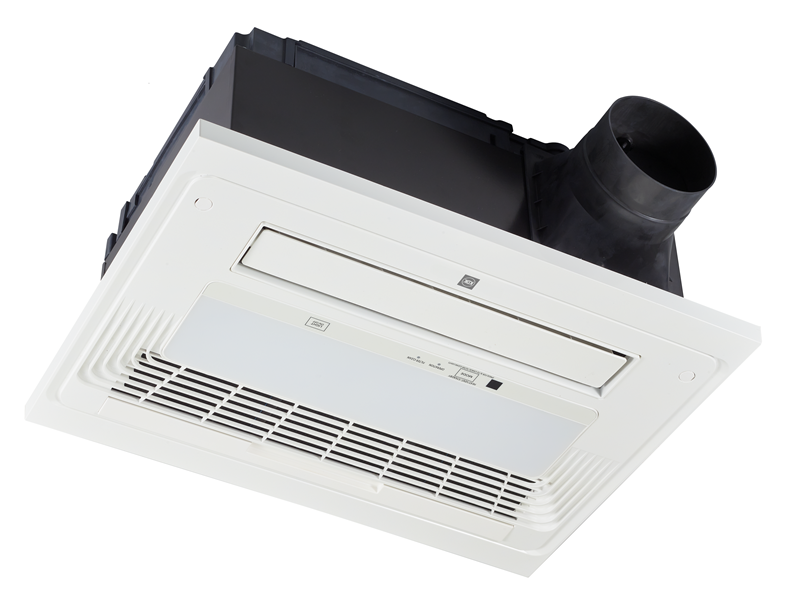

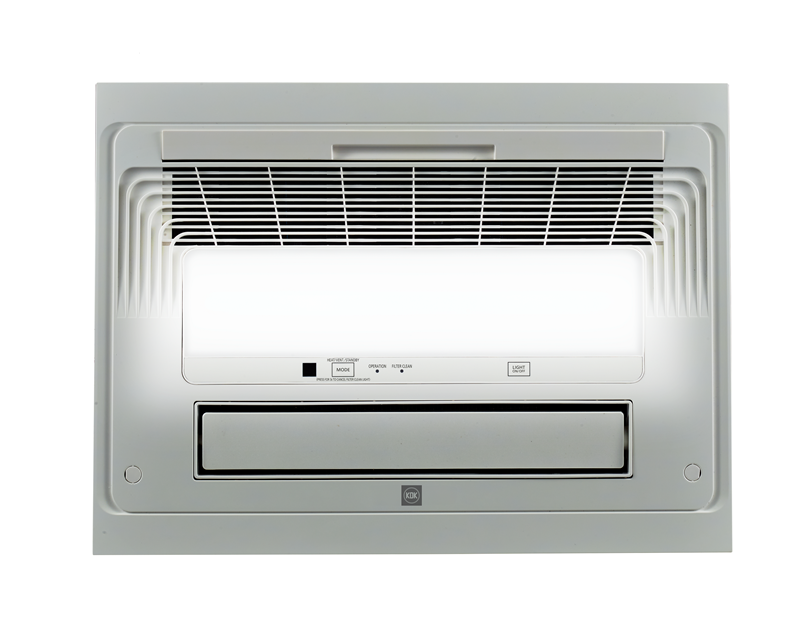

Ceiling Mount – Lighting Thermo Ventilator

New1
  • Ceiling Mount Installation
  • Heating / Ventilation/ Clothes Drying / Circulation Feature
  • Fully sealed LED light with Hi/Lo light switch
  • Air Direction: Auto/Fixed
  • Swing: Wide/Spot

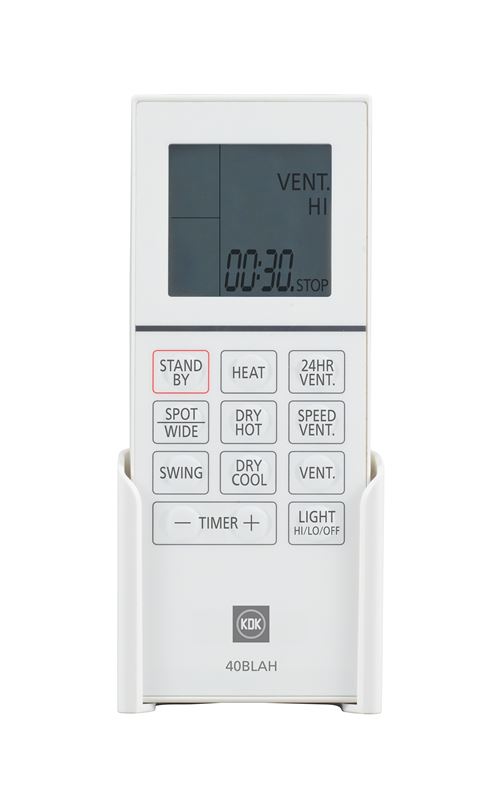

  • Remote Control for Easy Operation and Installation
Color: Pearl White
Price: HK$4,180



Feature

  • Ceiling Mount Installation
  • Fully sealed LED light with Hi/Lo light switch
  • Heating / Ventilation function with Hi /Lo selection
  • Air Direction: Auto/Fixed
  • Swing: Wide/Spot
  • With 15 Level Safety Protection and Thermostat
  • 24 hours Ventilation Function
  • Timer Control Feature
  • Remote Control for Easy Operation and Installation
  • Antibacterial Filter
  • Max. Time
    - Heat: 180 mins
    - Vent. 24 hrs CONT.
    - Dry Hot: 360 mins
    - Dry Cool: CONT.
  • Size(mm) : 472 (L) x 350 (W) x 197 (D)

Specifications

40BLAH
40BLAH
Net Weight 6.4 Kilogram (kg)
Power Source 13 A
Wattage Ventilation 25 W
Max. Wattage 2,100 W
Air Volume Ventilation 200 CMH
Noise Level Ventilation 42 dB
Heating 45 dB
Heater PTC
Control Type Wireless Remote
Heating Yes
Dry Hot/Cool
Ventilation 24hr/Turbo/Hi/Lo
Timer 5-720(Minute)
Filter Antibacterial Filter
No. of Motor / Blade 1 / 1
No. of Exhaust Outlet 1
Duct Diameter Ø 100 (mm)
Ø 4 (inch)
Installation Hole Size 280 x 400 (mm)
11.02 x 15.75 (inch)

FAQ

🙋 Installation hole size and louver size

Model Type Installation hole size Height x Width (mm) Louver size Height x Width (mm)
23BWAH Window Mount 242 x 238 280 x 280
23BWBH Window Mount 242 x 238 280 x 280
23BWDBH Window Mount 242 x 238 280 x 280
30BWBH Window Mount 300 x 275 350 x 320
30BGCH Ceiling Mount 300 x 300 360 x 360
40BECH Ceiling Mount 280 x 400 350 x 472
40BLAH Ceiling Mount 280 x 400 350 x 472
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
